Location

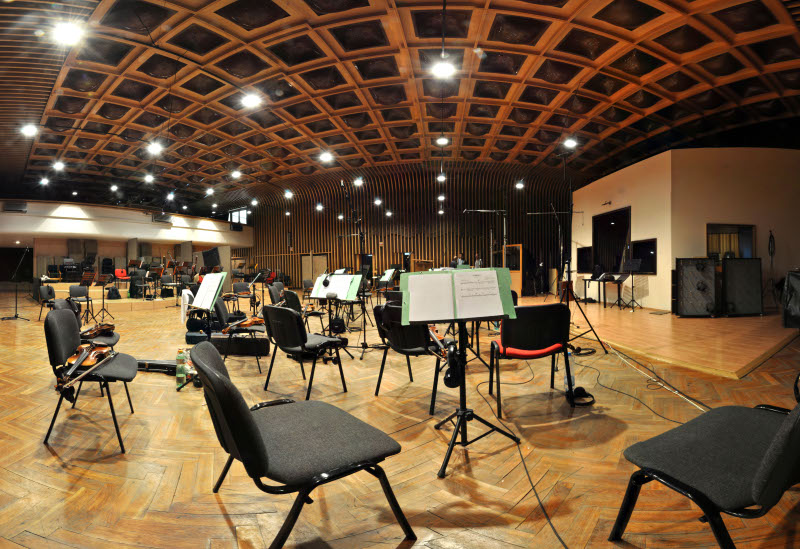

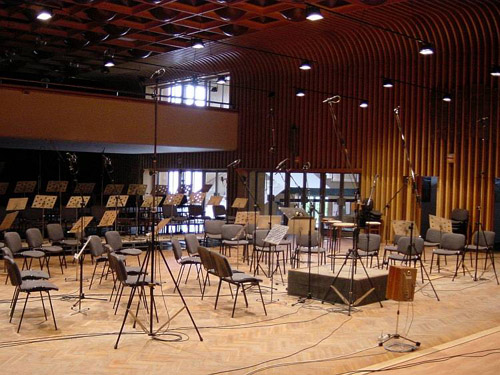

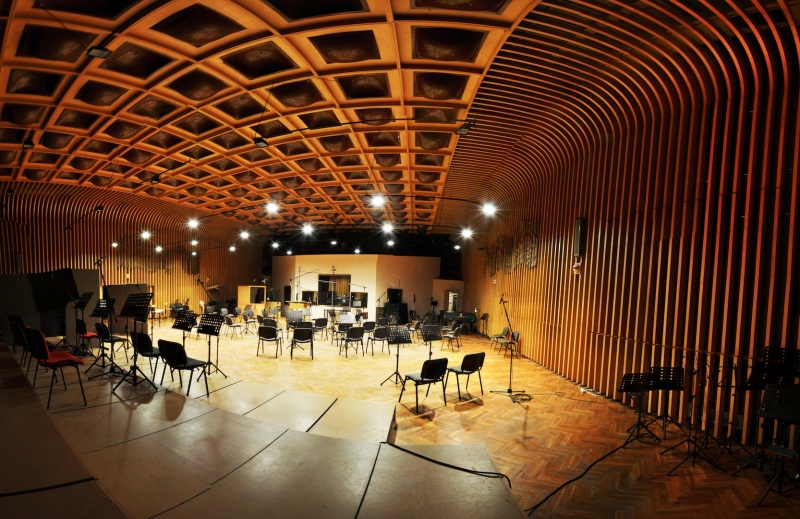

CNSO STUDIO No.1 is a professional full-service 32-track recording studio located about 15 minutes from the center of Prague. The studio is designed to give artists and soloists a relaxed place to record. It is an ideal place for recording symphonic music, film-score music, and chamber music incuding the solo recordings. The venue provides a full range of services including digital multitrack recording, automated mixing, digital editing and mastering.

SADIE Classic digital editor is used for precise digital editing. During editing, the session takes are downloaded to the computer in the background. This allows immediate editing, because there is no need for customer to wait until all the recorded material is loaded.

CNSO STUDIO No.1 offers recording of film score music in sync to the picture. We can work both in PAL and NTSC standards. We can arrange up to 6 channel recordings at 96kHz / 24 bit resolution for DVD-Audio masters.
CNSO STUDIO No.1 Stage Plan   AUDIO SAMPLES
Recording technology & equipment
ProTools
1 x Digidesign HD2
1 x Digidesign 192 I/O with AD expansion card
1 x Digidesign 192 I/O with DA expansion card
1 x Digidesign Sync I/O
1 x Apple Power Mac G4 MDD 2Ľ 1,25 GHz with 1GB RAM and Superdrive
1 x ATTO Express PCI UL3D SCSI Card
2 x Samsung Syncmaster SM171N
17" TFT Monitor

Software:   Mac OS X running Pro Tools 8
    Mac OS 9.2.2 running Pro Tools 8.3.1
In/Out possibilities:   24 channels Analog in/out
    16 channels AES/EBU in/out
    16 channels TDIF in/out
    16 channels ADAT in/out


Size of the hall:   20 x 10 x 8 m / 1600 m3
Size of the control room:   5 x 6 x 3 m / 90 m3
Piano:   STEINWAY model C 227/1998

Mixing console:   OTARI STATUS 32 inputs, 24 multitrack outputs, stereo output
    Computer automated mixdown „Eagle Automation“, „Total Recall“ option

Monitors:   2 x B&W 801

Power amps:   QSC Stereo

Microphones:   2 x Neumann U87
    4 x Neumann U67
    2 x Neumann KM 84/KK83
    2 x Neumann TLM 103
    4 x Sanken CU 41
    2 x Schoeps CMC 5 - MK21
    4 x Schoeps CMC 5 - MK4
    3 x AKG C 414
    2 x AKG C 460
    4 x Sennheiser MKH 40
    2 x Bruel&Kjaer 4006 (omni)
    1 x Sennheiser MKH 60
    2 x AKG D224
    1 x Sennheiser Evolution e 602
    1 x Sennheiser Evolution e 604
    3 x Sennheiser Evolution e 609
    2 x Sennheiser Evolution e 845

Microphone stands:   3 x Neumann large stands
    20 x small stands
    30 x microphone cables, holders etc.
    15 meters highboom stands from Neumann

Additional recording
equipment:		   1 x compressor/limiter UREI 1178
    2 x 8 channel digital multitrack recorder ADAT FOSTEX RD 8 (total 16 tracks.)
    4 x 8 channel digital multitrack recorder TASCAM DA-98,88,78HR,38 (total 32 tracks.)
    1 x DAT SONY PCM 7050
    1 x DAT SOMY PCM R-700
    1 x digital reverb LEXICON Model 300 LARC0

Digital audio editor:   Sadie Classic 2ch. input , 4 ch. output (Software 3.07.06)

Video equipment:   2 x TV monitors PAL/NTSC JVC
    1 x U-matic high band player PAL (25fps) SONY BVU 900
    1 x PAL Black burst generator 50Hz
    1 x NTSC Black Burst generator 59.94Hz

On special request:   We can arrange for you the rental of other professional recording equipment:
    External A-D converters – you can have EUPHONIX 24channels
    Mic pre-amps: 3sets MILLENIA MEDIA HV-3D-8 (8ch.) (i.e. 24channels total)
    You can have up to 60 infrared headphones for the recording sessions.
Technical questions:   kotzmann@seznam.cz
